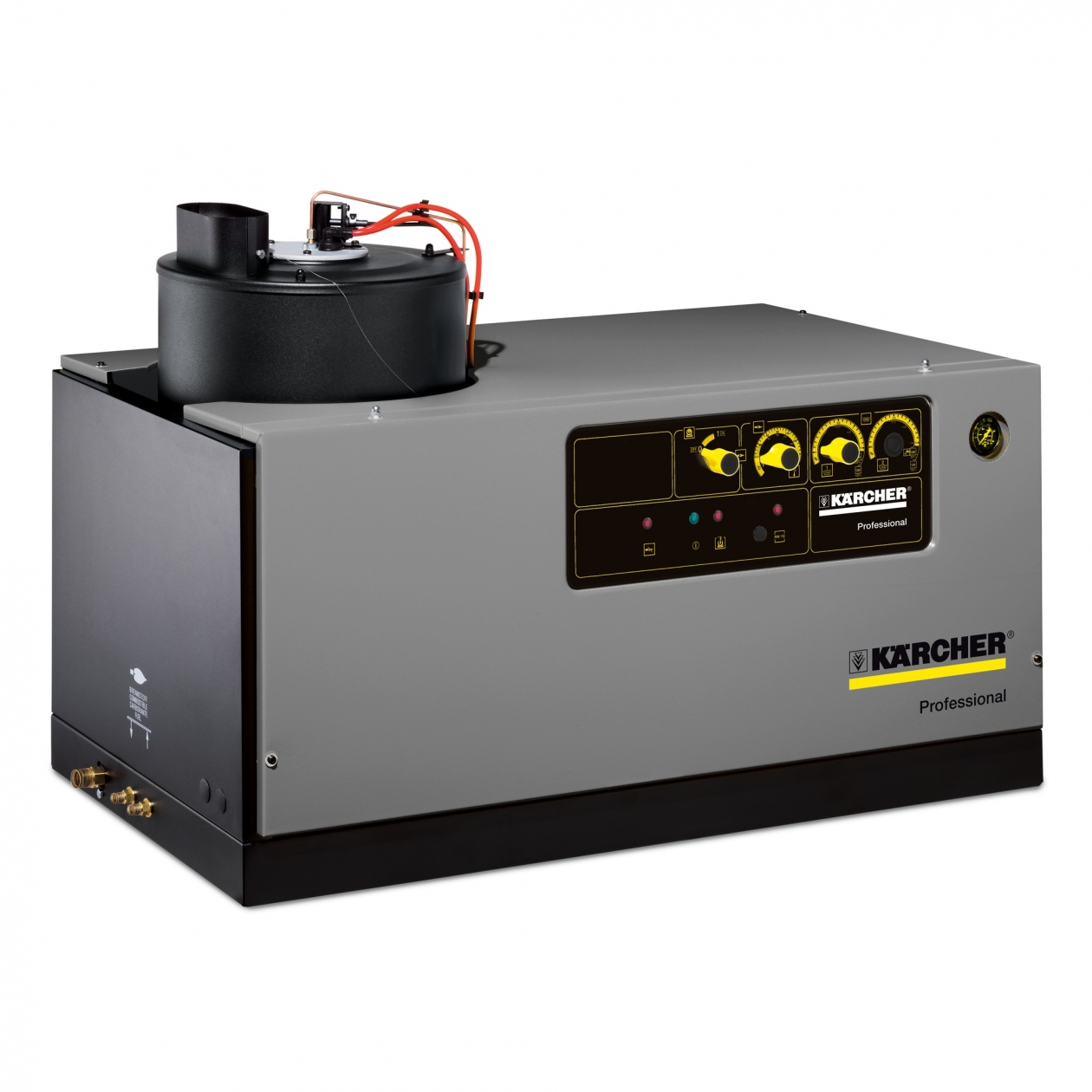

High Pressure Cleaner HDS 9/14-4 ST

Hot Water High Pressure Cleaner HDS 9/14-4 ST

The Hot Water High Pressure Cleaner HDS 9/14-4 ST Eco stationary system offers an extraordinarily high level of safety with its outstanding pressure relief, flue gas temperature monitor

Order Now
Categories: , SKU: 1.698-900.0 Tag:

Description

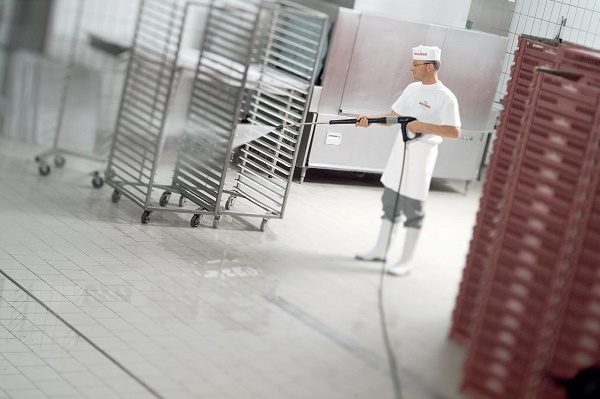

The Hot Water High Pressure Cleaner HDS 9/14-4 ST Eco stationary system offers an extraordinarily high level of safety with its outstanding pressure relief, flue gas temperature monitor, innovative dry run cut-out in the float tank (protecting the pump) and the soft dampening system that reduces vibrations therefore extending the life of the unit. Ideal for cleaning applications where cleaning and disinfecting have to be done regularly to high standards such as in the food industry or in sanitary areas. Used with Eco-Line boilers, these units comply with the latest BimSch emission regulations.

Specifications

Technical data

EAN code4039784730458
Current type (Ph)3 - 400 - 50
Flow rate (l/h)500 - 930
Operating pressure (bar/MPa)30 - 140 / 3 - 14
Max. temperature (°C)155 - 80
Power rating (kW)6.4
Consumption fuel oil (kg/h)5.8
Fuse protection (A)min. 16
Weight (kg)140
Dimensions (L x W x H) (mm)1110 x 565 x 690

Equipment

  • SDS system

  • System pressure relief

  • Flame monitor

  • Ready for Servo Control

  • Ready for remote control

Features & Benefits

High Pressure Cleaner HDS 9/14-4 ST

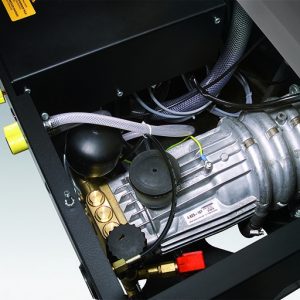

Water-cooled 4-pole electric motor (oil-heated)

Long service life, improved efficiency and guaranteed quiet operation.
High Pressure Cleaner HDS 9/14-4 ST

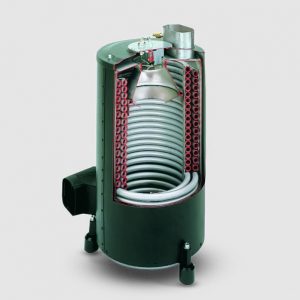

Innovative burner technology

High heat output, spiral heating coil for a compact design and upright design prevents condensation and corrosion.
High Pressure Cleaner HDS 9/14-4 ST

Water treatment unit

Truckwash

Water treatment unit

Truckwash

  • Safe and ample storage for protective gear, accessories and cleaning agent

  • Storage hooks for power cord and high-pressure hose.

Applications

Machine that is suitable for operation with biodiesel
Machine that is suitable for operation with biodiesel
Automatic switchoff of motor and pump when the trigger gun is closed.
Automatic switchoff of motor and pump when the trigger gun is closed.
High-pressure gun with patented holding force reduction.
High-pressure gun with patented holding force reduction.
Recommended maximum duration of use in hours/day.
Recommended maximum duration of use in hours/day.
Regulation of pressure and water flow at the trigger gun.
Regulation of pressure and water flow at the trigger gun.
