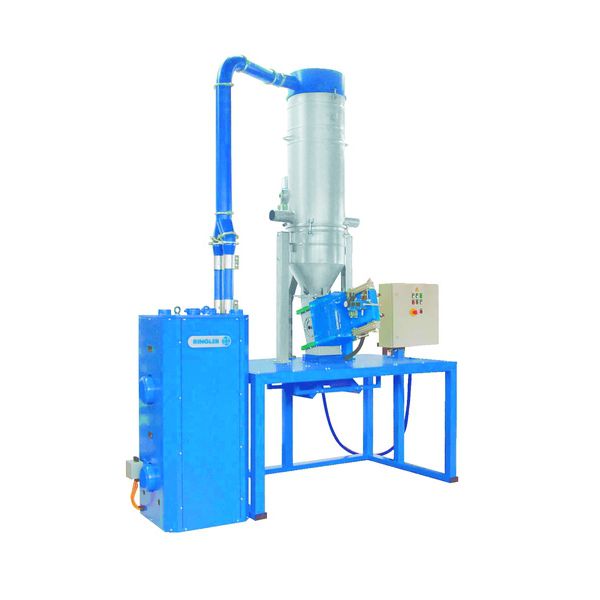

Stationary Extraction System RA 702 D 2 x 5.5

The Stationary Extraction System RA 702 D 2 x 5.5 is a robust, compact machine for industrial use.

Order Now
Categories: , SKU: 9.982-469.0 Tag:

Description

The Stationary Extraction System RA 702 D 2 x 5.5 is a robust, compact machine for industrial use. Ideal for vacuuming swarf, liquids, sludge, granulate, grey cast iron swarf and dust, and very hot swarf. The machine meets the health and safety requirements of EU directives (CE Declaration of Conformity) in terms of construction and design. Ringler assemblies: drive unit (2 x D 5.5 kW, soundproofed and splashproof) with 5.5 kW direct-drive ring blower with integrated safety filter; dual-chamber rotary airlock for continuous discharge of extracted waste (250 x 250 x 250 mm, control system required); filter container with integrated cyclone-like preliminary filter and enlarged intake zone, pocket filter (3.2 m² filter area, cat. “L” according to DIN EN 60335-2-69, Annex AA); compl. support frame made from welded rectangular tubing; two NW 70 connecting hoses between the drive unit and filter tower; connecting adapter between the piping and filter system; electric vibration motor for automatic filter cleaning. Other features, like the dual-chamber rotary airlock (500 x 500 x 500 mm) or control cabinet in a colour of your choice, are optional.



Specifications

Technical data

Ringler Item No.-
Rated input power (kW)
11
Voltage Ph/V/Hz3/345-415/50-50
Sound pressure level (dB(A))69
Dimensions (L×W×H) 2255x1080x3725
Container capacity (l)-
Weight (kg)520
